About this product

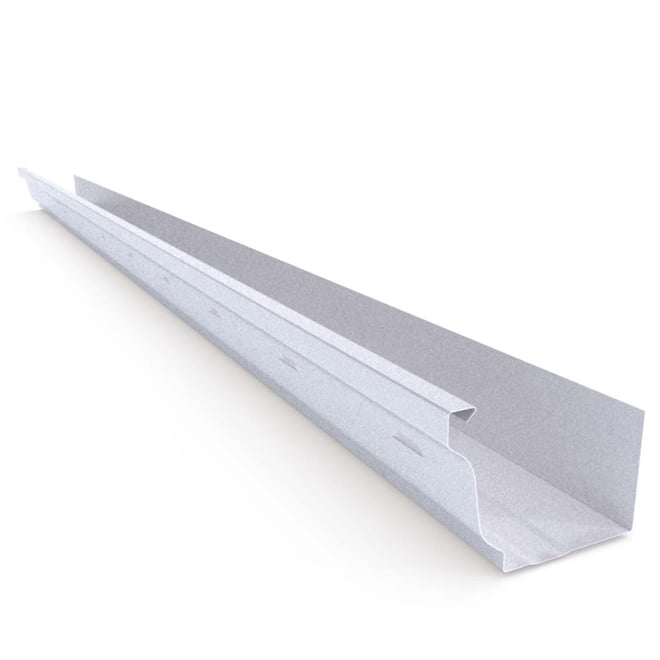

Stratco S Gutter has a colonial style that is reflected in the gentle curves of its profile. It is ideal for period restorations and modern homes with a traditional feel. It features a 90mm high front to hide the roofline and is available with slots.Colonial Styled Guttering
With an ornate profile for homes with traditional style
Designed for traditional homes and period restorations, Stratco S Gutter features an ornate profile that is available with slots in the front to allow excess water to overflow.
Choose from a large range of pre-painted steel colours or un-painted zinc/al. Complete your project with a range of S Gutter accessories including brackets, mitres and stop ends.
Available Colours
Brochures & Installation Guides
Gutter Accessories
Internal and External Mitres
Gutter mitres manufactured from the same gutter profile can be supplied, ready to use on site. These mitres provide a continuous line around the corners and can be made to any angle required to suit the design of the building.
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
Metal Fix Bracket
Metal fix brackets hold the face of the gutter into position. They are not visible on the gutter face.
Timber Fix Bracket
Timber fix clips are used on timber fascia, a simple solution for replacing existing gutter on a building.
Note: Availability is state specific, please check prior to ordering.
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|---|
| G550 | 0.35 | Standard | 5315 | 6358 |
| Slotted | 4609 | 5622 | ||
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
Dimensions
|
Dimensions (mm)
|
|
| A | 62 |
|---|---|
| B | 117 |
| C | 90 |
