About this product

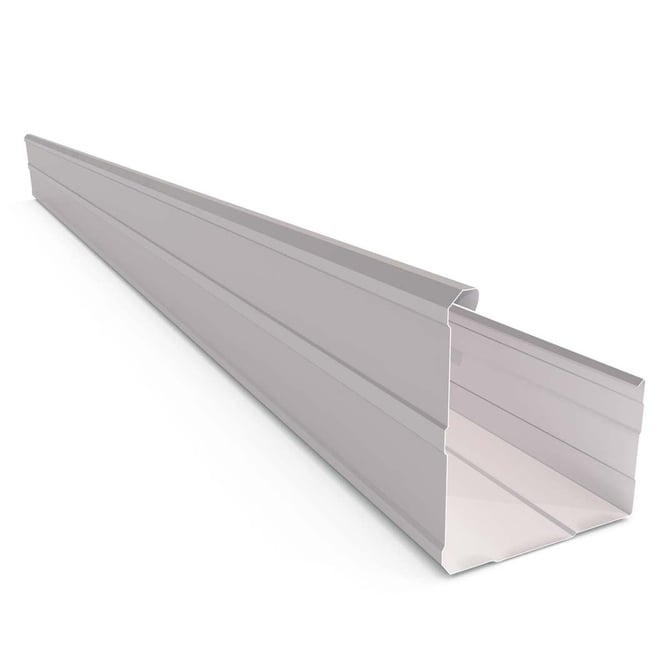

VFM Gutter has a 138mm square front that is ideal for covering the end of roofing. It has a clean profile and a suspension rib in the back face for strength. VFM Gutter has excellent water carrying abilities and slots for excess water overflow.Strong, High Front Guttering
Conceal the edge of roofing with resilient VFM Guttering.
Ideal for commercial and industrial applications due to its strong, rigid profile and generous water carrying capacity. VFM Gutter expertly hides the edge of roofing due to its high front face. With a pronounced rib in both the front and back face of the gutter, VFM Gutter will remain straight over long lengths.
VFM Gutter is available with slots in the front to allow excess water to overflow in high rainfall areas. Choose from un-painted zinc/al or from a large range of pre-painted colours. Complete your project with a range of accessories including gutter brackets, mitres and stop ends.
Available Colours
Brochures & Installation Guides
Gutter Accessories
Internal and External Mitres
Gutter mitres manufactured from the same gutter profile can be supplied, ready to use on site. These mitres provide a continuous line around the corners and can be made to any angle required to suit the design of the building.
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
Internal Str-8-line Strap
Internal gutter straps hold the face of the gutter into position. They are installed internally at 1.2 metre intervals and are not visible on the external face.
GP Bracket
GP brackets are fixed at 1.2 metre intervals and are generally used when replacing existing gutters.
Note: Availability is state specific, please check prior to ordering.
Specifications
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
Dimensions
| Dimensions (mm) | |
| A | 77 |
|---|---|
| B | 120 |
| C | 138 |
